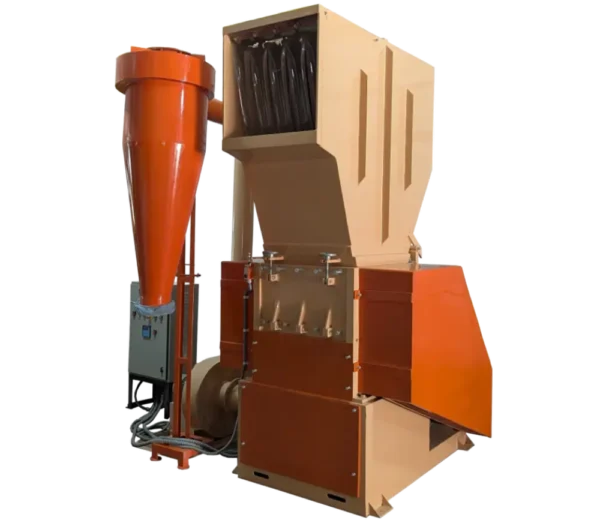

Plastic Scrap Grinder Machine Manufacturer
Managing plastic waste efficiently is critical for modern manufacturing and recycling facilities. The Shred Maxx Plastic Scrap Grinder Machine converts bulky plastic waste into high-quality, re-usable regrind material. Engineered for maximum durability, energy efficiency, and operational safety, our industrial grinding machines process a wide spectrum of plastic materials including PET bottles, HDPE containers, PVC pipes, PP woven bags, injection moulding runners, blow-moulded lumps, and automotive plastic scrap.
In manufacturing, raw material costs account for up to 60% of total production expenses. Investing in an in-house recycling system allows manufacturing plants to reintroduce scrap directly back into production cycles, reducing raw material purchasing costs while minimizing environmental impact.
Technical Specifications of Plastic Scrap Grinder
| Specification | Details |
|---|---|
| Machine Type | Plastic Scrap Grinder |
| Capacity | 50 – 500 Kg/hr (Customizable) |
| Motor Power | 5 HP – 50 HP |
| Blade Material | High Carbon / D2 Steel |
| Blade Type | Rotary & Fixed Blades |
| Cutting Chamber | Mild Steel / Stainless Steel |
| Screen Size | 8 mm – 20 mm |
| Voltage | 220V / 440V |
| Frequency | 50 Hz |
| Automation Grade | Semi-Automatic / Automatic |
Technical Features of Plastic Scrap Grinder
-
Heavy-Duty Construction – Built with a strong steel body that ensures long-term durability and resistance to wear and tear, even during continuous operation.
-
High-Quality Blades – Precision-cut blades made from high-grade materials ensure sharpness, durability, and consistent grinding performance.
-
Energy Efficient Motor – Low power consumption motor reduces operational costs while maintaining high productivity.
-
Low Noise Operation – Designed with sound-reducing technology to minimize noise levels, making it suitable for indoor industrial environments.
-
Easy Maintenance – User-friendly design allows for quick blade replacement, cleaning, and maintenance.
-
Safety Features – Overload protection, emergency stop button, and safety guards ensure complete operator safety.
Key Advantages of Plastic Scrap Grinder
Save Money on Raw Materials
Turns plastic waste, defects, and scrap directly back into reusable granules, cutting plastic purchasing costs by up to 40%.
Lower Electricity Bills
Scissor-like cutting blades slice plastic effortlessly, using up to 25% less power than standard crushers.
Consistent Quality
Produces uniform plastic flakes with minimal dust, making them easy to mix back into production without clogging machines.
Saves Factory Space
Crushes bulky plastic items (like bottles and tubs), reducing waste volume by up to 90%.
Handles Multiple Plastics
Easily grinds both soft and hard plastics (PET, HDPE, PVC, PP, ABS, and more).
Easy to Clean & Safe
Quick-open design makes color changes fast, while built-in safety switches protect operators.
Working Principle
1. Feed Hopper Intake
Scrap plastic is introduced through the insulated feed hopper. An anti-flyback curtain prevents material fragments from rebounding out of the throat.
2. High-Speed Shear Cutting
As the material enters the grinding chamber, high-speed rotary blades attached to the central shaft rotate past fixed stationary blades mounted on the chamber walls. The tight clearance between rotary and fixed edges cuts the plastic cleanly.
3. Chamber Circulation
The cut fragments circulate inside the grinding chamber until they are reduced to a size smaller than the screen mesh perforations positioned beneath the rotor.
4. Discharge & Silo Transfer
Particles matching or smaller than the screen openings fall through into the discharge bin or pneumatic conveying line for immediate transfer to storage silos, gaylords, or processing machines.
